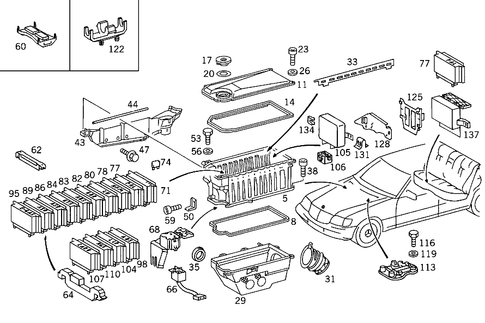

Apparatus Case and Control Units for 1993 Mercedes-Benz 400SEL
No.
Part # / Description / Price
Price
6
Housing
Mercedes-Benz
Mercedes-Benz Notes: As of ident. no.:
A 290167
EXCEPT CODE 805
ALSO INSTALLED IN VEHICLE TO A 290166 WITH CODE 806
Description: Apparatus case.
12
Cap Mercedes-Benz
Mercedes-Benz Notes: As of ident. no.:
A 290167
EXCEPT CODE 805
ALSO INSTALLED IN VEHICLE TO A 290166 WITH CODE 806
Description: Apparatus case.
23
Screw Mercedes-Benz
Mercedes-Benz Description: Cover to apparatus case. M5X25
Diameter: 5mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Mounting, tank. Grab handle to roof rear rail,inside. Roller blind mounting. Bracket mounting.
Diameter: 5mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Mounting, tank. Grab handle to roof rear rail,inside. Roller blind mounting. Bracket mounting.
26
MSRP $3.00
$2.16
31
Bellows Mercedes-Benz
Mercedes-Benz Notes: As of ident. no.:
A 290167
EXCEPT CODE 805
ALSO INSTALLED IN VEHICLE TO A 290166 WITH CODE 806
Description: Apparatus case to wheelhouse.
38
Screw Mercedes-Benz
Mercedes-Benz Description: Fastening electric motor. M5X30
Diameter: 5mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Engine fixing. Cable tray to apparatus case. Turn signal lamp to fender. Door separation point, rear.
Diameter: 5mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Engine fixing. Cable tray to apparatus case. Turn signal lamp to fender. Door separation point, rear.
39
Holder Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
As of ident. no.: A 290167 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO A 290166 WITH CODE 806
As of ident. no.: A 290167 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO A 290166 WITH CODE 806
Description: Control unit.
40
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Notes: As of ident. no.:
A 290167
EXCEPT CODE 805
ALSO INSTALLED IN VEHICLE TO A 290166 WITH CODE 806
Description: Amplifier at c-pillar. Amplifier to bracket. Reinforcem. At bracket, left.
MSRP $3.50
$2.52
MSRP $3.50
$2.52
41
Holder Mercedes-Benz
Mercedes-Benz Notes: As of ident. no.:
A 290167
EXCEPT CODE 805
ALSO INSTALLED IN VEHICLE TO A 290166 WITH CODE 806
Description: Control unit in apparatus case.
42
Holder Mercedes-Benz
Mercedes-Benz Notes: As of ident. no.:
A 290167
EXCEPT CODE 805
ALSO INSTALLED IN VEHICLE TO A 290166 WITH CODE 806
Description: Cable harness on equipment compartment.
53
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: Main muffler suspension. M8x16. Central muffler suspension. Bracket on rear axle m 8x16.
MSRP $3.20
$2.28
MSRP $3.20
$2.28
56
MSRP $3.00
$2.16
57
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Notes: As of ident. no.:
A 290167
EXCEPT CODE 805
ALSO INSTALLED IN VEHICLE TO A 290166 WITH CODE 806
Description: M6x20. At air conditioner case or heater case.
MSRP $3.50
$2.52
MSRP $3.50
$2.52
59
Cap Screw Mercedes-Benz
Mercedes-Benz Description: Lower steering shaft to upper steering shaft. M8X35
Diameter: 8mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. To separation point. Torsion bar to bracket. Bracket to caliper. Bracket to oil filter.
Diameter: 8mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. To separation point. Torsion bar to bracket. Bracket to caliper. Bracket to oil filter.
MSRP $4.00
$2.88
MSRP $4.00
$2.88
71
Basic Module Mercedes-Benz
Mercedes-Benz Notes: FIRST EXHAUST STOCK OF OLD PARTS ON VEHICLES NOT EQUIPPED WITH AUTOMATIC AIR CONDITIONER
72
Control Unit, Base Module Mercedes-Benz
Mercedes-Benz Notes: As of ident. no.:
A 290167
EXCEPT CODE 805
ALSO INSTALLED IN VEHICLE TO A 290166 WITH CODE 806
74
74
MSRP $4.20
$3.00
74
Fuse Mercedes-Benz
Mercedes-Benz Description: Fuse to fuse box. Blade fuse ATO. Engine compartment, 15 amp. Interior, 15 amp.
MSRP $4.20
$3.00
MSRP $4.20
$3.00
77
Control Unit Mercedes-Benz
Mercedes-Benz Notes: AS OF IDENT. NO., INTEGRATED IN CONTROL UNIT, ETS/ASR TRACTION SYSTEM
77
Control Unit Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Only used with acceleration skid control (asr).
MSRP $264.00
$187.86
MSRP $264.00
$187.86
80
Remanufactured Control Unit 1 Mercedes-Benz
Mercedes-Benz Notes: PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
80
Control Unit Mercedes-Benz
Mercedes-Benz Notes: PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
WHEN ORDERING, PLEASE DO NOT FAIL TO FILL OUT THE FORM COMPLETELY, AND TO PUT IT ON FILE. "ORDER FOR SPARE KEYS/LOCKING PARTS" IN CASE OF CRIMINAL INVESTIGATIONS, YOU SHOULD AT ANY TIME BE ABLE TO GIVE DOCUMENTARY EVIDENCE.
SEE FOOTNOTES : 151 / 429
As of ident. no.: A 236206 ALSO INSTALLED ON A 205261 - A 236204 WITH CODE 030
THEFT-RELEVANT PART
WHEN ORDERING, PLEASE DO NOT FAIL TO FILL OUT THE FORM COMPLETELY, AND TO PUT IT ON FILE. "ORDER FOR SPARE KEYS/LOCKING PARTS" IN CASE OF CRIMINAL INVESTIGATIONS, YOU SHOULD AT ANY TIME BE ABLE TO GIVE DOCUMENTARY EVIDENCE.
SEE FOOTNOTES : 151 / 429
As of ident. no.: A 236206 ALSO INSTALLED ON A 205261 - A 236204 WITH CODE 030
THEFT-RELEVANT PART
81
Remanufactured Control Unit 1 Mercedes-Benz
Mercedes-Benz Description: Engine control module.
MSRP $2,638.00
$1,850.53
MSRP $2,638.00
$1,850.53
111
Control Unit 1 Mercedes-Benz
Mercedes-Benz Notes: PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
IMPORTANT:FOLLOWING INSTALLATION,CONTROL UNIT MUST BE PROGRAMMED USING HAND-HELD TESTER!
VERSION CODE CAN BE COMPARED TO DATA IN FDOK SYSTEM (FADON). IF A VERSION CODE IS NOT IDENTIFIABLE,IMMEDIATELY ORDER A NEW PART BY STATING ES1 26 AND IDENT NO.
IMPORTANT:FOLLOWING INSTALLATION,CONTROL UNIT MUST BE PROGRAMMED USING HAND-HELD TESTER!
VERSION CODE CAN BE COMPARED TO DATA IN FDOK SYSTEM (FADON). IF A VERSION CODE IS NOT IDENTIFIABLE,IMMEDIATELY ORDER A NEW PART BY STATING ES1 26 AND IDENT NO.
Description: Automatic transmission control. Transmission control module.
143
MSRP $0.90
$0.60
152
MSRP $22.00
$15.59
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
No.
Part # / Description / Price
Price
33
Guide Sign Mercedes-Benz
Mercedes-Benz Notes: FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. ( A 144703 )
ONLY FOR CALIFORNIA
ONLY FOR CALIFORNIA
57
Bolt And Washer Assembly Mercedes-Benz
Mercedes-Benz Description: M6x16. Front fender to front panel pillar. Bracket to partition. Apparatus case to wheelhouse.
66
Switch Mercedes-Benz
Mercedes-Benz Notes: FROM MODEL YEAR 94
FEDERAL AND CANADA ONLY
FEDERAL AND CANADA ONLY
Description: On-board diagnosis box. Test plug.
MSRP $70.00
$50.36
MSRP $70.00
$50.36
68
Holder Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
FROM MODEL YEAR 94
FEDERAL AND CANADA ONLY
FROM MODEL YEAR 94
FEDERAL AND CANADA ONLY
Description: Clipped to module box.
95
Control Unit Mercedes-Benz
Mercedes-Benz Notes: FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 212244
Description: Electronic accelerator.
107
Control Unit 1 Mercedes-Benz
Mercedes-Benz Notes: ONLY FOR CALIFORNIA
PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
Description: Diagnosis.
113
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
